Expert Advice on How to Measure HVAC Furnace Air Filter Size

Pro Tips on How to Measure HVAC Furnace Air Filter Size

Wondering how to measure your HVAC furnace air filter size accurately? You'll need a reliable tool for this task. First, ensure safety by switching off your HVAC system.

Next up, take out the existing filter. Now, it's time to measure this filter's dimensions. You're looking for length, width, and depth, and you'll need to measure in inches from one corner to the other.

Remember, your focus should be on the filter, not its housing. Write down each dimension for future use. Precise measurements are important for efficient air treatment and can help you avoid unnecessary damage to your HVAC system, saving you some costs.

Main Points to Remember

  • Begin by confirming safety; shut down your HVAC system prior to removing the filter for measurement.

  • Employ precision tools, like tape measures, to ascertain the filter's length, width, and depth in inches.

  • During measurement, focus only on the filter, not its housing, since filters are typically somewhat smaller to accommodate housing dimensions.

  • Record each dimension for future reference, ensuring you buy the correct size in subsequent purchases.

  • If in doubt, seek professional advice to prevent errors that might escalate your energy bills or cause potential harm to your HVAC system.

Understanding HVAC Furnace Air Filters

The HVAC furnace air filters and their operation within your heating setup at home are essential. These HVAC system components function as barriers. If they become clogged with undesired air pollutants, these filters capture and remove them from the air that circulates in your home. Various filters are made from different materials, including fiberglass, polyester, and pleated fabric, each material having various efficiencies in filtering the air.

The maintenance of the HVAC system should always involve regular checks on the state of these filters and replacement when necessary. Once covered with dust or dirt, the filters cease to be as effective in purifying the air as they should be, thereby reducing the quality of air in your home. What will be even worse is that you will force the HVAC system to work harder, which can also damage it, reducing the years of service before a replacement.

Importance of Correct Filter Size

Selecting the correct filter size for your HVAC furnace air filters is important. This knowledge isn't limited to ensuring a tight fit in your HVAC system. Both filter efficiency and overall HVAC performance are influenced directly by this choice.

Filter efficiency refers to the capacity of your air filter to capture and retain airborne particles. Employing a filter of insufficient size won't cover the entire area of air intake, resulting in unfiltered air passing through. On the flip side, oversized filters can't be installed correctly, leaving room for unfiltered air to slip through.

HVAC systems have varying filter size requirements for optimal operation. Choosing a filter of incorrect size could result in inferior indoor air quality, increased energy expenses, and potential damage to your HVAC system.

Steps to Measure Your Air Filter

Curious about measuring your HVAC furnace air filter? Fear not, simplicity marks the process. Gather necessary filter materials alongside measurement tools, typically a tape measure, plus the filter.

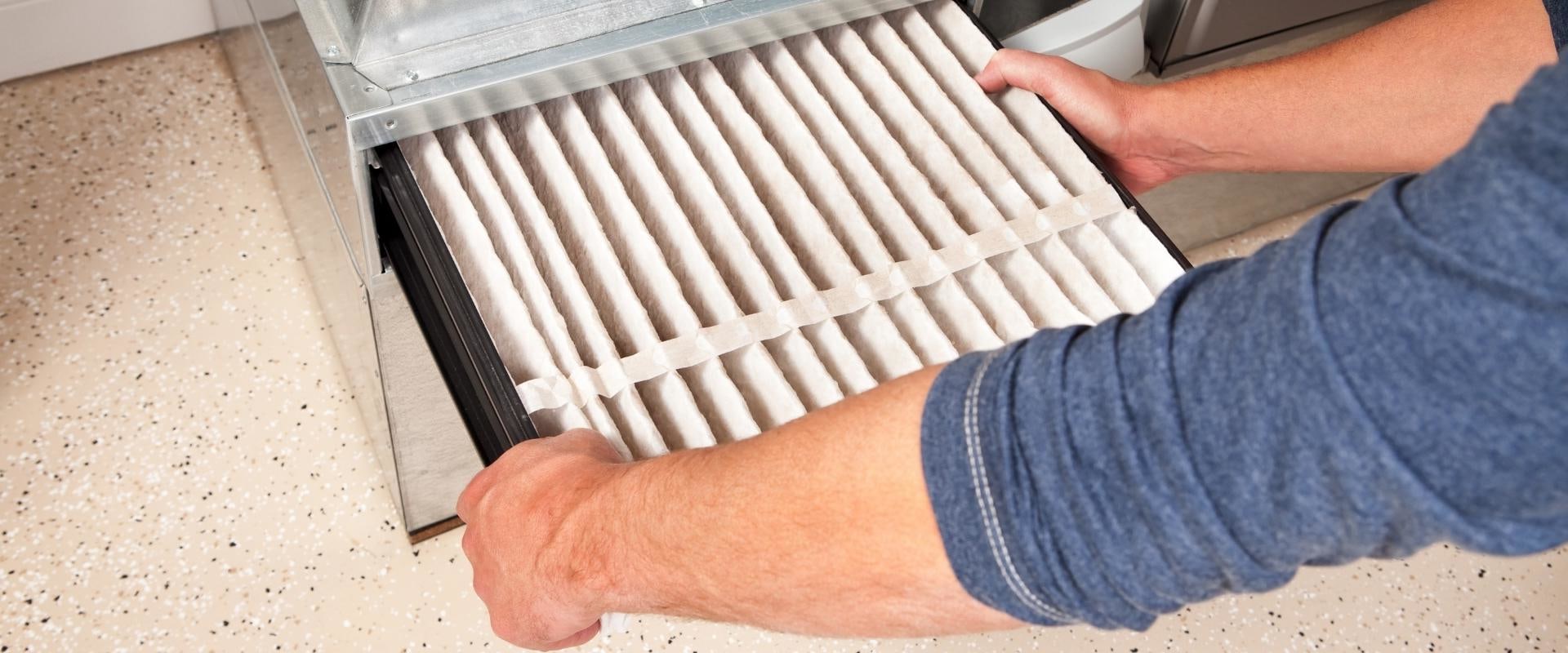

For safety, ensure your HVAC system remains off before filter removal. Usually, this component resides in an easily accessible slot within the system. Removal of the existing filter marks the commencement of measurement.

Commence with determining the filter's length and width. Position your tape measure at the top-left corner, extending it to the top-right corner to ascertain length. Do this again from the top-left to the bottom-left corner for width. Always measure in inches, the standard unit for filter sizes.

Lastly, establish the filter's depth. Position the tape measure at the filter's side, generally the smallest dimension. Remember to jot down each measurement for reference.

Common HVAC Air Filter Sizes

Filters maintaining the quality of air in your home as part of their HVAC system also come in several standard sizes. These sizes frame the primary 14x25x1, 16x20x1, 16x25x1, 20x20x1, and 20x25x1. The organizations are in inches for length, width, and depth proportionately.

However, not every filter will be compatible with all HVAC systems. Certain unique systems require uniquely sized filters. Should your furnace not accommodate standard filter sizes, measuring your current filter or filter slot will help you find the appropriate size.

In terms of efficiency, size does not come into play. This is because any filter’s efficiency is rated by its Minimum Efficiency Reporting Value. Filters with a higher MERV rating offer better filtration. Although it is essential to make sure the filter fits into your system, the MERV rating determines the quality of air in your home as much.

Mistakes to Avoid When Measuring

Getting the proper filter size for an HVAC system is crucial, but measuring blunders often yield incorrect sizing. One such error might occur if you're utilizing a basic tape measure instead of a specialized filter measuring instrument, leading to inaccurate results.

Beware of the pitfall of misinterpreting measurements that’s why you must know how to measure your HVAC furnace air filter size. Some individuals erroneously measure the housing of the filter versus the filter itself, resulting in a filter that's too large. Keep in mind, when measuring filters, the height, width, and thickness of the actual filter are your targets, not its housing.

Filters often measure slightly smaller than their stated size to fit effortlessly into the filter housing. Thus, if an old filter seems somewhat smaller than anticipated, there's no need for alarm.

If ever in doubt, consulting with a professional is always a wise move. With their expertise and proper tools, you can be assured of getting the correct filter size. By sidestepping these typical errors, your HVAC system can perform both effectively and efficiently.

Frequently Asked Questions

What Materials Are HVAC Furnace Air Filters Typically Made Of?

Pleated paper or spun fiberglass usually forms the composition of your HVAC furnace air filters. Polyester and electrostatic fibers are also frequently utilized for enhanced filter efficiency and improved material sustainability.

How Often Should I Replace My HVAC Furnace Air Filter?

Replacement of your HVAC furnace air filter typically happens every 3 months. This lifespan, however, can vary due to use frequency or shifting seasons. Should furnace usage increase, consider changing your filter sooner.

Can I Clean and Reuse My HVAC Air Filter Instead of Replacing It?

Yes, cleaning your HVAC air filter is possible but not advised. Such practices may prolong filter use, yet they fail to reinstate complete efficiency. Adhering to the manufacturer's recommendations about filter replacement proves best.

What Are the Signs of a Clogged or Dirty HVAC Air Filter?

Signs of a compromised HVAC air filter may include a noticeable loss in filter effectiveness, and a substantial impact on airflow. Dust accumulation near vents and an increase in your energy bills can also point toward a dirty filter.

Does the Brand of My HVAC System Affect the Type of Air Filter I Need?

Contrary to what some might believe, your HVAC system's brand doesn't dictate the required air filter type. Rather, compatibility with your system matters most. Knowledge of system size along with other specific requirements can guide you in choosing the ideal filter.
